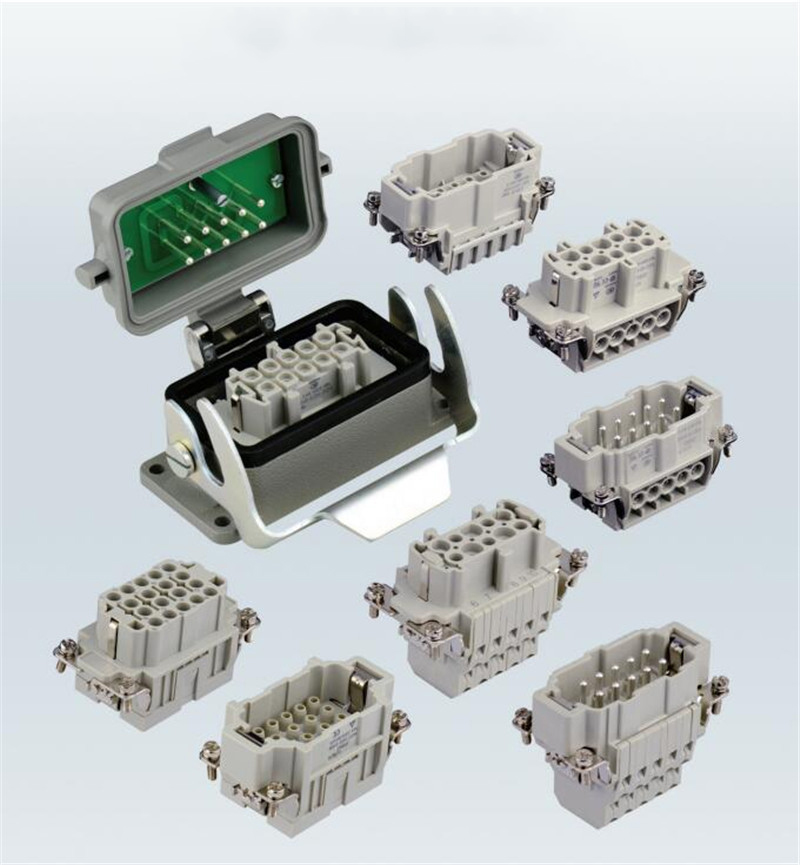

Suppliers HE series rectangular 32 pin connectors automation heavy duty connector
Heavy Duty Connectors, often abbreviated as HDCs, are specialized components designed to facilitate secure electrical connections in harsh and demanding environments. Unlike standard connectors, which may not withstand extreme temperatures, moisture, vibrations, or mechanical stress, HDCs are engineered to excel in challenging conditions. Their rugged construction and versatile configurations make them indispensable in industries where reliability is paramount.
Materials and Construction heavy duty wire connectors
The resilience of Heavy Duty Connectors begins with their materials and construction. These connectors are typically crafted from high-quality materials such as robust metals and durable plastics, chosen for their ability to withstand environmental stressors. Common materials used in HDCs include:
Metal Alloys: Heavy Duty Connectors often feature metal components, such as aluminum, stainless steel, or zinc die-cast alloys. These metals offer excellent strength and corrosion resistance, crucial for withstanding harsh industrial environments.
Engineering Plastics: Complementing metal components, engineering plastics like polyamide (PA) or polycarbonate (PC) are frequently employed in HDCs. These plastics provide insulation, mechanical stability, and resistance to chemicals and impacts, enhancing the connectors' durability.
Sealing Materials: Many HDCs incorporate sealing materials such as rubber or silicone to protect against moisture, dust, and contaminants. These seals ensure the integrity of the connection even in outdoor or hazardous environments.
| Wire gauge | 0.14m㎡-4.0m㎡ 26-14AWG |
| Connection type | screw terminal, crimp terminal, spring terminal |
| House material | zinc alloy |
| Contact material | Copper alloy |
| Insert material | Polycarbonate |
| Current rating(A) | 16A |
| Voltage resistance | 500V |
| ontact resistance | <1mΩ |
| Features | weatherproof, stable, secure |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP65/IP67 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
