Description

Customized various T Y type 2 Pin 3 Pin Outdoor Cable Screwless terminal IP68 Waterproof Electrical Wire Connector

Name: Customized ip68 waterproof electrical cable connector
Brand: Xiamen Leaka Electrical Equipment Co., Ltd
SKU: M682-A
Availability: InStock
Rating: 5 (1 reviews)

IP68 wire connector are advanced connectors that are designed to be waterproof and dustproof, and they can work in a variety of harsh environments, including sandstorms, open rain, snow and ice, immersion in water, and other watery environments. ip68 connectors are efficient and reliable tools that ensure the stability of the connection as well as the reliability of the system.
Products Parameters of ip68 ethernet connector

Technical parameter
Product name	Electrical wire terminal connectors ip68 waterproof connector	Number	M682
Rated voltage	AC 450V	Waterproof grade	IP68
Rated current	13A	Terminal material	Brass
Cross-sectional area	0.5~0.75mm2	Material	PA66 Nylon
Certificate	TUV SAA CE RoHS
Payment terms	100% T/T,Mastercard credit card,payoneer,e-Checking
Cable diameter	4-8mm	Working temperature

Ip68 t connector are available in various forms, the common ones are plug type, hole type, T-type and Y-type, and so on. Plug type IP68 connectors are usually used in the automotive field, the hole type IP68 connectors are commonly used in the medical equipment, computer and electric power fields, while the T-type and Y-type IP68 connectors are often used in the outdoor lighting and LED lighting industry. Regardless of the type, these IP68 connectors share one common characteristic, which is that they are waterproof, dustproof, shockproof, and corrosion-resistant.

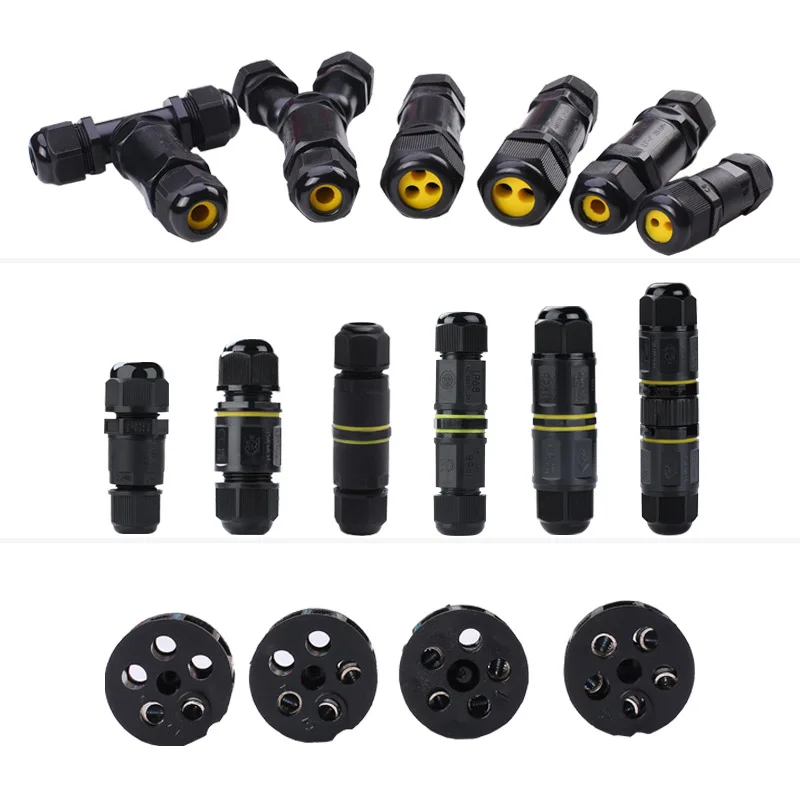

Waterproof connector series
Number	M682-B	M683	M684-A	M684-B	M685	M685-T	M685-Y
Core number	2P/3P	3P	2P/3P/4P	2P/3P/4P	2P-5P	M685	M685
Current/Voltage	9A/ 450V AC	16A/ 450V AC	16A/ 450V AC	16A/ 450V AC	24A/ 450V AC	24A/ 450V AC	24A/ 450V AC
Working temperature	T60	T60	T60	T60	T60	T60	T60
Shell material	PA66	PA66	PA66	PA66	PA66	PA66	PA66
Cable diameter	4-8mm	5-9mm 9-12mm	5-9mm 9-12mm	5-9mm 9-12mm	5-9mm 9-12mm	4-8mm 8-12mm 10-14mm	4-8mm 8-12mm 10-14mm
Protection rating	IP68	IP68	IP68	IP68	IP68	IP68	IP68
Cross-sectional area	0.5~0.75mm2	0.5~1.5mm2	0.5~1.5 mm2	0.5~2.5 mm2	0.5~4.0mm2	0.5~4.0 mm2	0.5~4.0 mm2

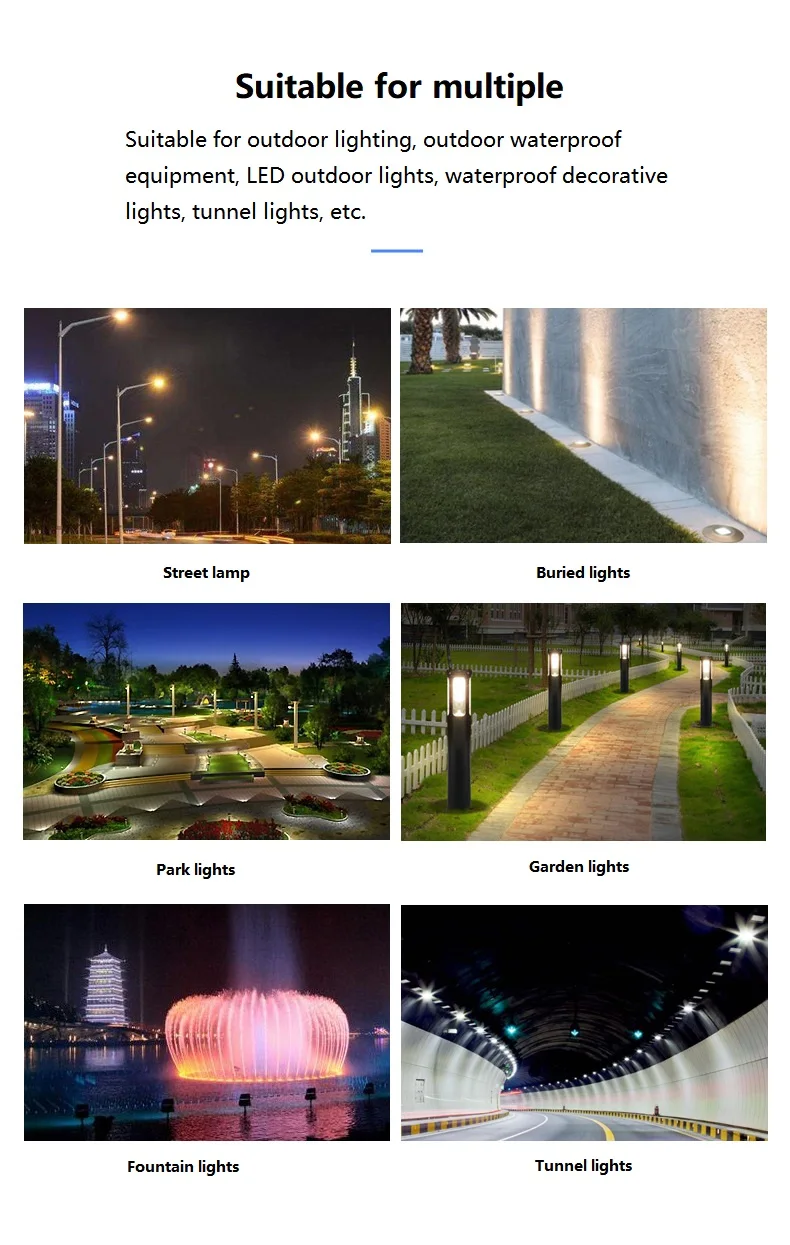

Applicactons of ip68 power connector

Company Advantage

Leaka is a professional manufacturer of all kinds of connctors. Covers are area of 3500sqm, have 100 staff includes 10R&D staff. We have passed CE, UL, SGS, CCC, Rohs product certification. And we adopt flexible manufacturing and scientific management to improve quality. Leaka has become one of the leaders in domestic connector manufacturing industry.
