Name: IL6M BH6F underwater cable connectors
Brand: Xiamen Leaka Electrical Equipment Co., Ltd
SKU: IL6M BH6F
Availability: InStock
Rating: 5 (1 reviews)

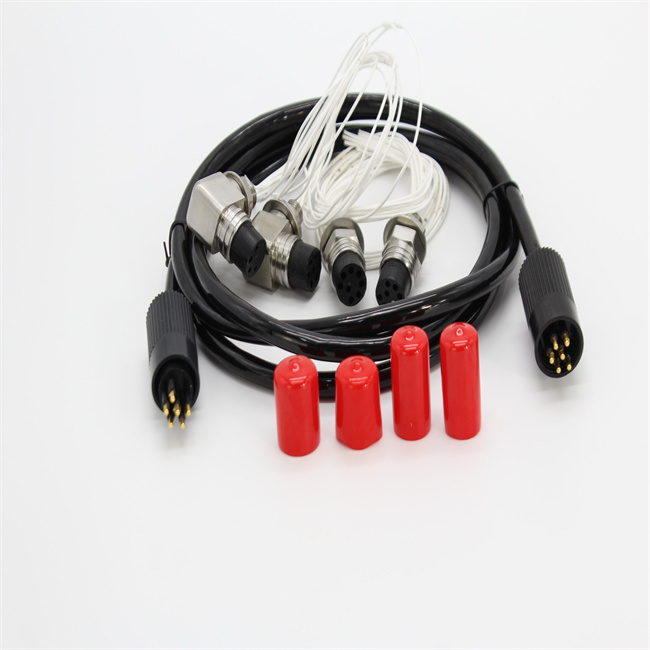

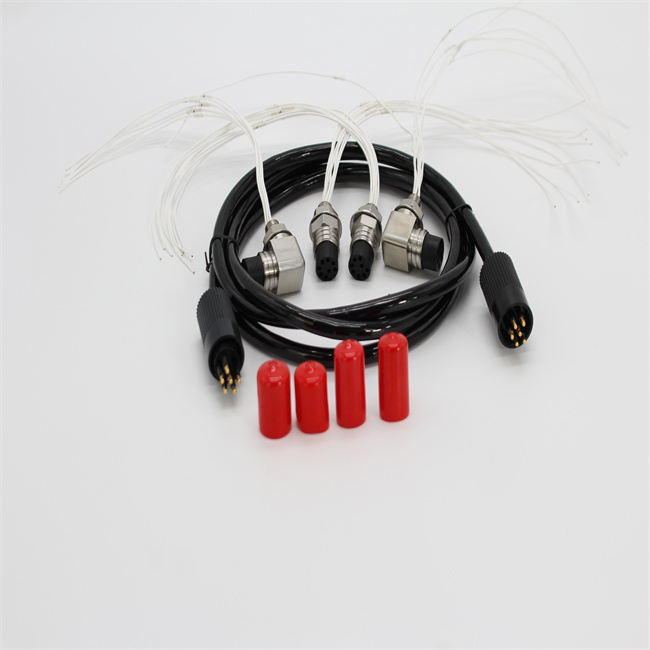

IL6M BH6F underwater cable connectors

No.IL6M BH6F

The watertight connector of IL6M BH6F 6pin standard circular double end series male cable female seat can reach a working water depth of 7000 meters. The bulkhead connector shell material is made of 316L stainless steel.

Description

Supplier IP68 Double end 6Pin IL6M BH6F underwater cable connectors

Model Number:	IL6M BH6F
Type	Underwater connector
Application:	Power
Gender:	Female/Male
Pins:	6P
Water depth:	7000 meters
Withstand voltage:	800V
Resistance:	200MΩ
Current:	10A
Installation thread:	5/8-18UNF
Working temperature:	(-50℃-100℃)
Certificate:	TUV CE CCC
Times of insertion and extraction:	>500 times
Contact material :	Brass with gold plating

Product Description underwater electric cable connector

Water depth 7000 meters

Withstand voltage 800V

Resistance 200

Current 10A

Working temperature (-50℃-100℃)

Certificate TUV CE CCC

Payment terms 100% T/T,Mastercard credit card,payoneer,e-Checking

Installation requirements
within the range of 25mm diameter around the mounting screw hole, the end face roughness is above Ra1.6
Note
Be sure to wipe the conductive silicone oil before plugging and unplugging. When pulling out, pull out straight, do not twist left and right, do not pull the cable directly, the cable should avoid acute corner bending. When using the bulkhead joint, make sure the joint does not tilt. External force, all joints are prohibited from excessive exposure to heat or direct sunlight.
Application

Feedback

FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer in connectors and wire harness
products. And we trade our products with our clients directly.
Q2: Can you do OEM and ODM?
A2: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q3: When can I get the price?
A3: Usually we quote within 1 hours after we get your inquiry.
Q4: What’s your MOQ?
A4: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q5: Do you provide sample ? Is it free?
A5: If the sample is low value, we will provide the free samples to test the quality. But
for some high value samples, we need to collect the sample charge.We will send the samples by express. Please pay the freight in advance and we will refund the freight when you place a larger order with us.
